stens 430770 starter ignition switch
stens 430770 starter ignition switch
stens 430770 starter ignition switch 1

stens 430770 starter ignition switch

$14.58
SKU OP604
Qty

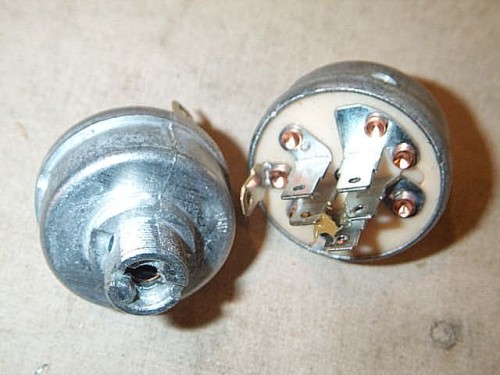

stens 430770 starter ignition switch, made by indak starter switches, 6 pole, 5 in the common configuration, and then one off to the side. uses standard indak / lawn mower key, INCLUDES ONE KEY and lock washer and nut which are not shown in the pics ) ;With the switch held looking at the terminals in a christmas tree fashion the top one is s for starter, the middle row: left one is m for magneto/coil/ignition, the one on the right is b for battery. bottom row: one on the left is l for lights, the one on the right is g . the 6th terminal, the one off to the side, is unmarked. one switch one key lock nut and lock washer per sale.

lock washers and nuts are included along with one key but not shown, we picked them up after we got these switches.
